Anchor Nuts

Specifications:

Size		SW(mm)		L(mm)	Unit Weight(kg)

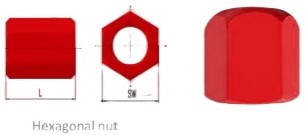

Hexagonal Nut
R25	41		41			0.30
R32	46		45			0.35
R32	46		65			0.45
R38	50		60			0.50
R51	75		70			1.55
T76	100		80			2.80
Spherical Nut
R32	46		45			0.45
R38	50		50			0.60
R51	75		70			1.60
T76	100		90			3.20
T30	46		35			0.42
T40	65		50			0.90
T52	80		70			2.20
T73	95		70			2.20
T103	125		80			3.40
T127	140		140			9.20
Type of steel	CK45
Thread direction	Left or Right
Thread standard	ISO 10208 / ISO 1720/ T international standards
Hardness (HRC)	HRC25~HRC30
Options of Anti-Corrosion	Epoxy coating Hot-dipped Galvanization: Standard ISO1461 Bending property: Standard ISO1519 Impact property: Standard ASTMD 2794 Adhesion: Standard ISO 2409:2007
